From version 1.22.0 of the zencontrol mobile commissioning application users can move wireless devices between control systems from inside the Address commissioning wizard.

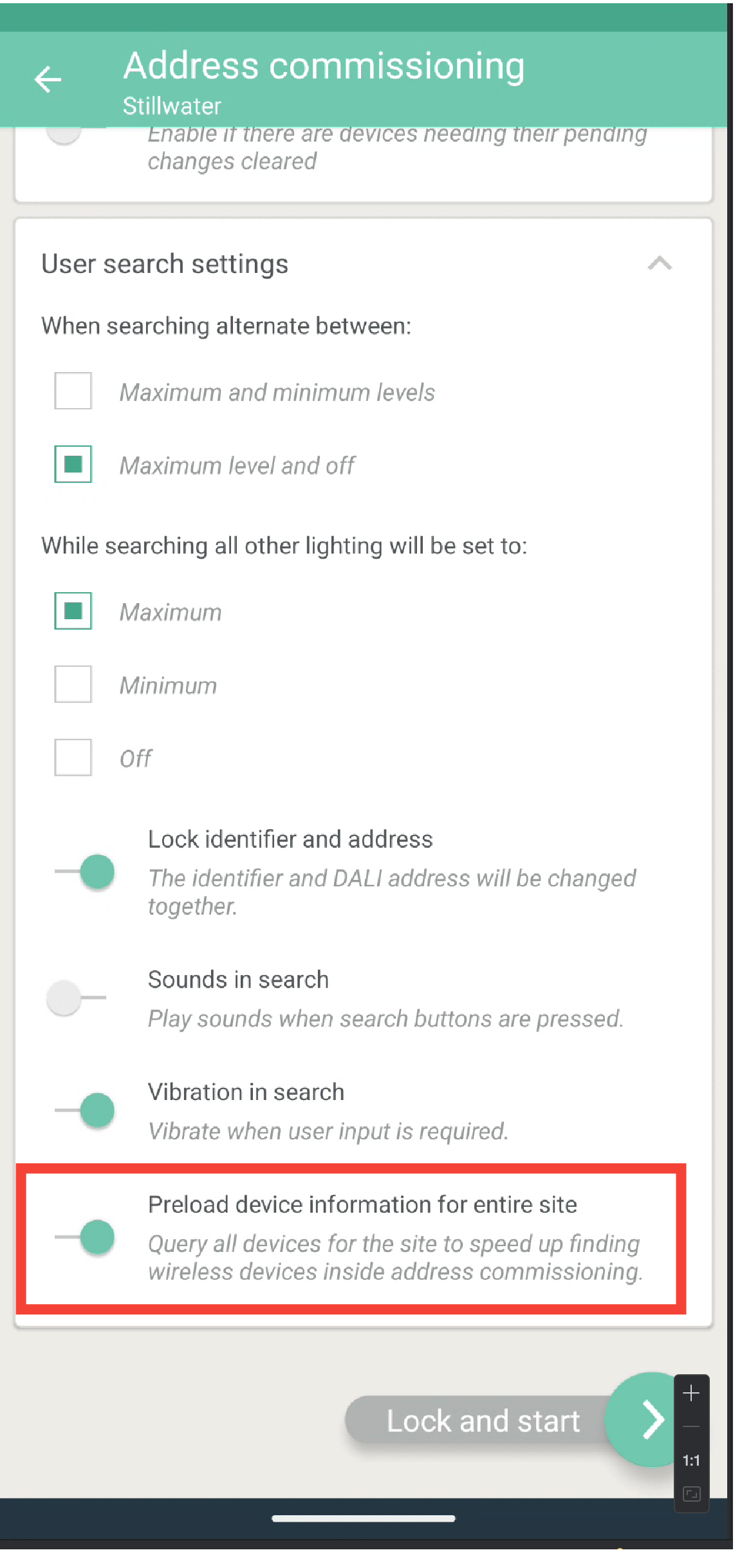

First enable the Preload device information for entire site option.
In order to move a device you first need to find it as you would any wireless device. You will need to get the device to turn on its commissioning beacon again by power cycling the device.
This can be done by right clicking on the device in device location and choosing Enable Bluetooth Discovery.
You must also mark the device as not commissioned (again, in the device location, change Address field dropdown to not commissioned).
Change the setting at the top of the wireless list to show commissioned and pending devices (not to be confused with the commissioned state you just changed in device location)
The device you are searching for will be marked "Commissioned".
When you select the device and confirm it is identifying you will be prompted if it is on another control system.
Selecting "Yes" will connect to the device, factory reset it, and delete it from the other control system, you will then be shown the Selected Product page as normal and be able to recommission it on your desired control system.
Devices being bridged behind the fitting you move will not be automatically deleted from the original control system and will need to be deleted manually once they go into comms error. The devices will be detected on the new control system once the wireless device has joined the network.
