Configuring Exclusion zones

After scanning the thermal sensor in the app, you will be taken to the configuration screen.

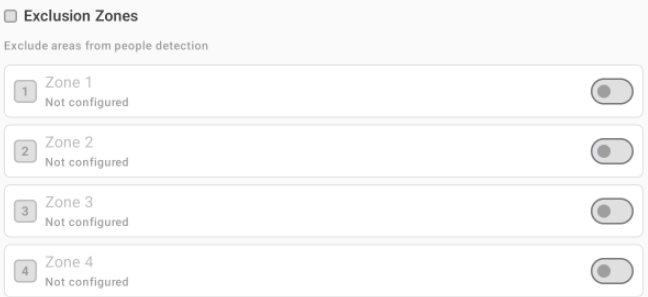

Scroll down to the Exclusion Zones section. Here, you can configure up to four exclusion zones.

When a zone is enabled, it will appear as a grey area in the visual representation. Select the zone you have enabled, then go to the display and drag the points of the grey exclusion zone to define the area you want to exclude.

This process can be repeated for up to four exclusion zones.
