Configuring the Occupancy Sensor

After scanning the thermal sensor in the app, you will be taken to the configuration screen.

Using the app, you can configure up to four occupancy sensor zones. These zones cannot overlap, and the app will enforce this rule.

At the top of the screen, there is a visual representation of the sensor’s detection pattern.

To enable or disable an occupancy sensor zone, scroll down the page until you reach the detection zones section. Each zone is labelled Zone 1 to Zone 4 and includes a toggle on the right-hand side to enable or disable that zone.

When a zone is enabled, you can select its box by clicking on it. Once selected, you can use the visual representation at the top of the screen to define and resize the sensor zone.

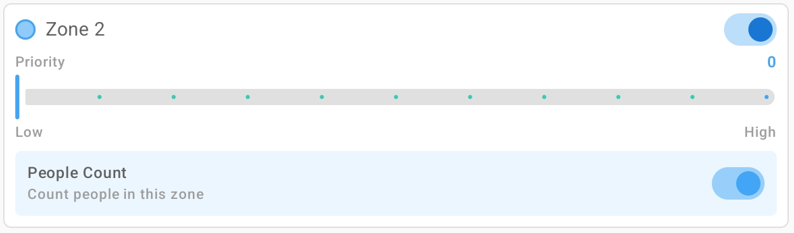

Where configured zones overlap, only the zone visible in the visual representation will be active. To control which zone takes precedence in overlapping areas, each zone includes a priority slider. Adjusting the priority changes the order in which zones are applied, allowing different zones to be brought to the front or sent to the back. Two zones cannot share the same priority level.
