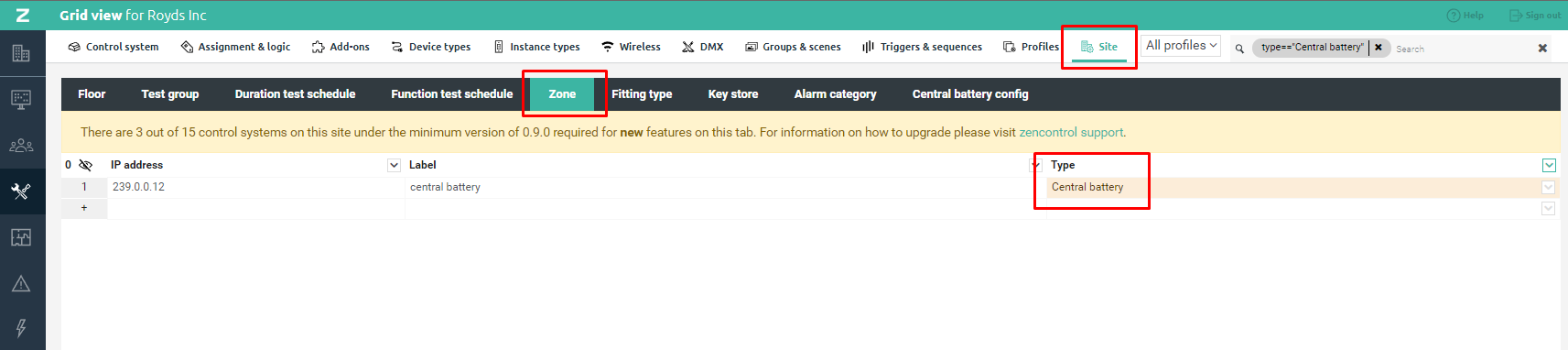

Setup a central battery type zone and groups in grid view
The group number should be consistent across all of the control systems that the central battery test will run against

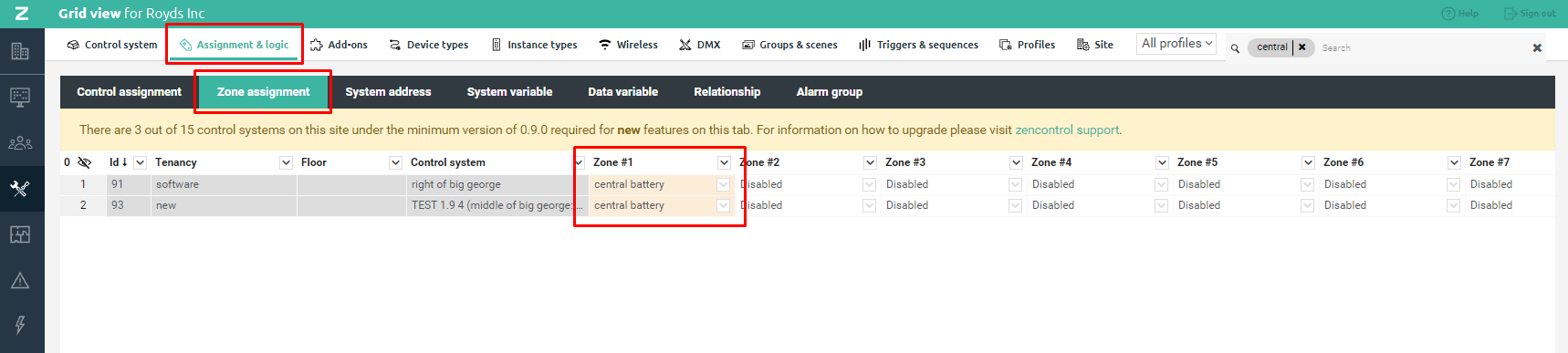

Assign all control systems on the central battery system to the zone

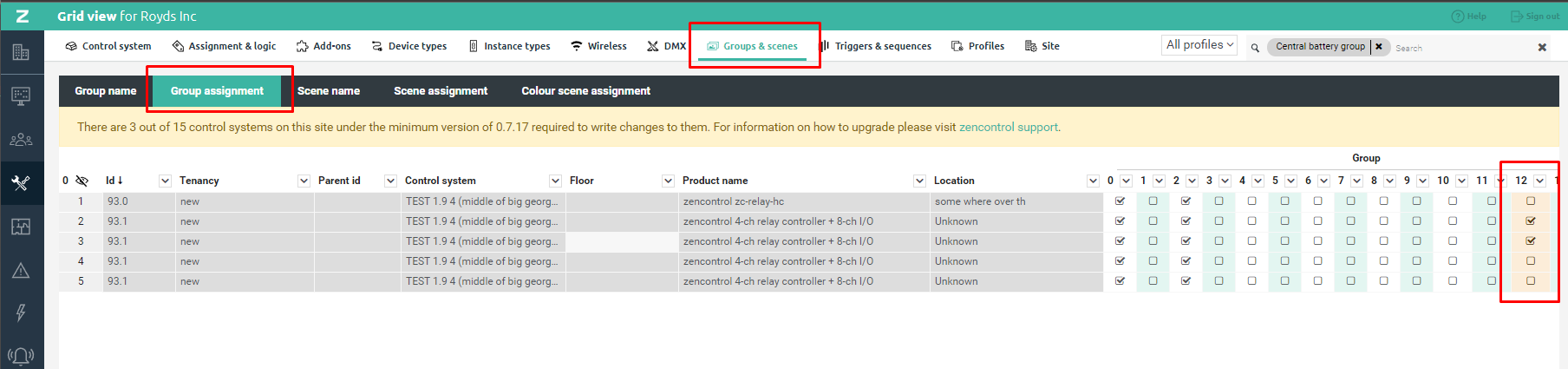

Assign all ECGs on the central battery system to the groups

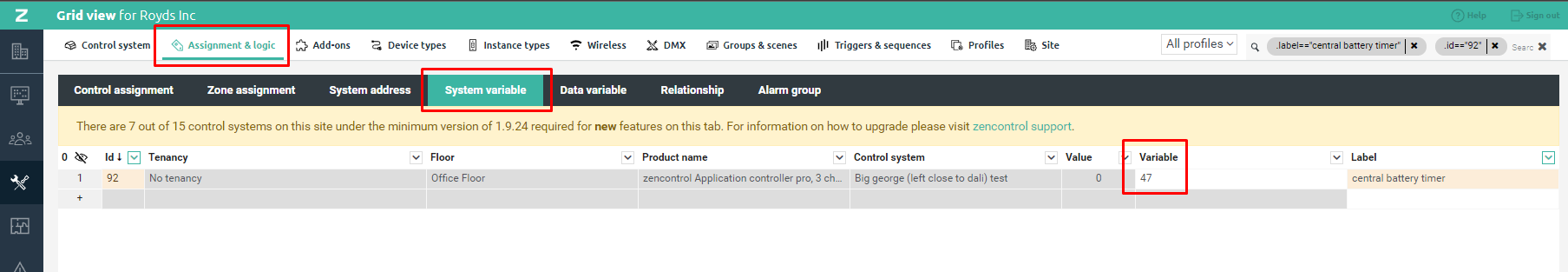

Add system variable for a timer on the control system the central battery test will be managed from
Variable number 47 is generally the number used for the timer but it can be any number

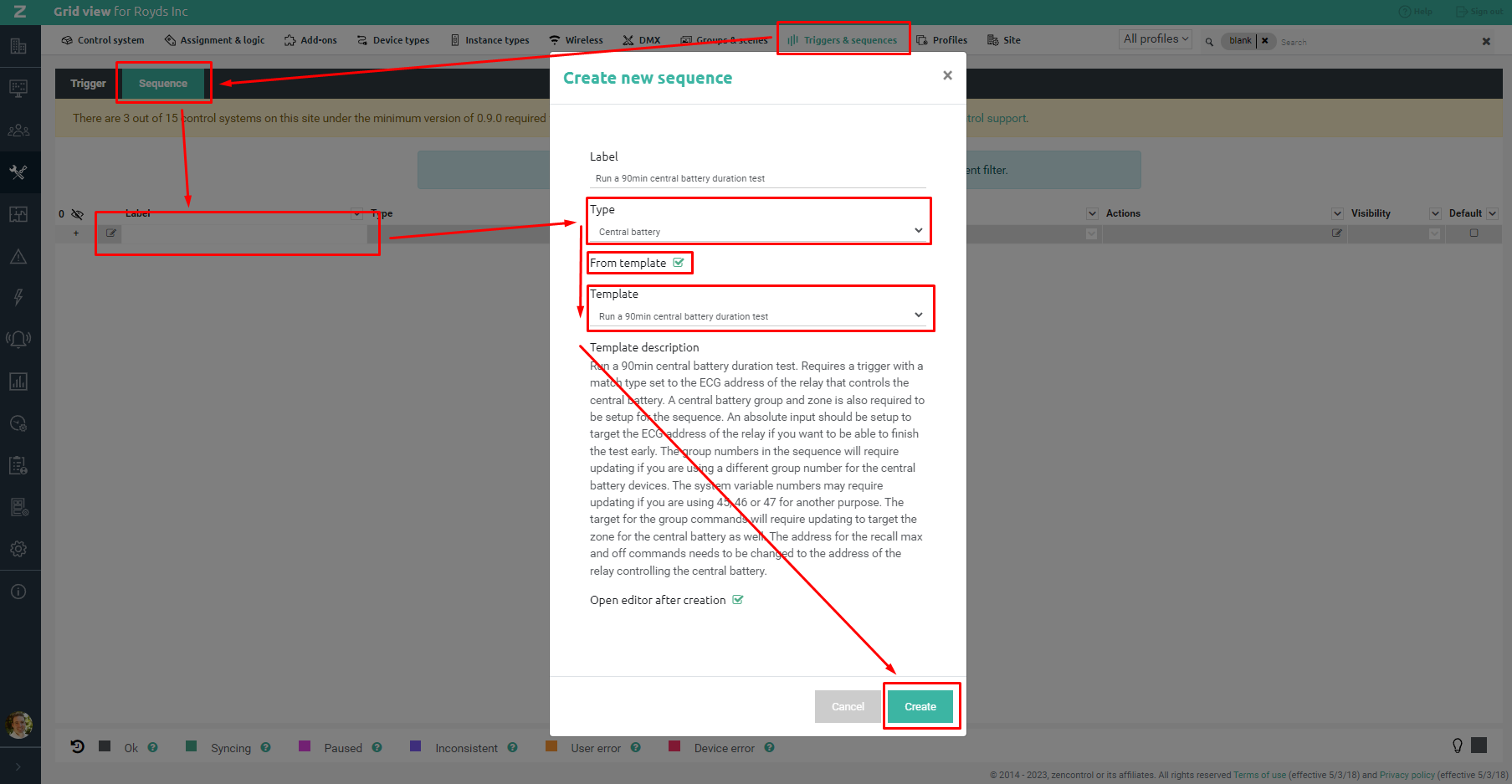

Create a sequence using one of the given templates

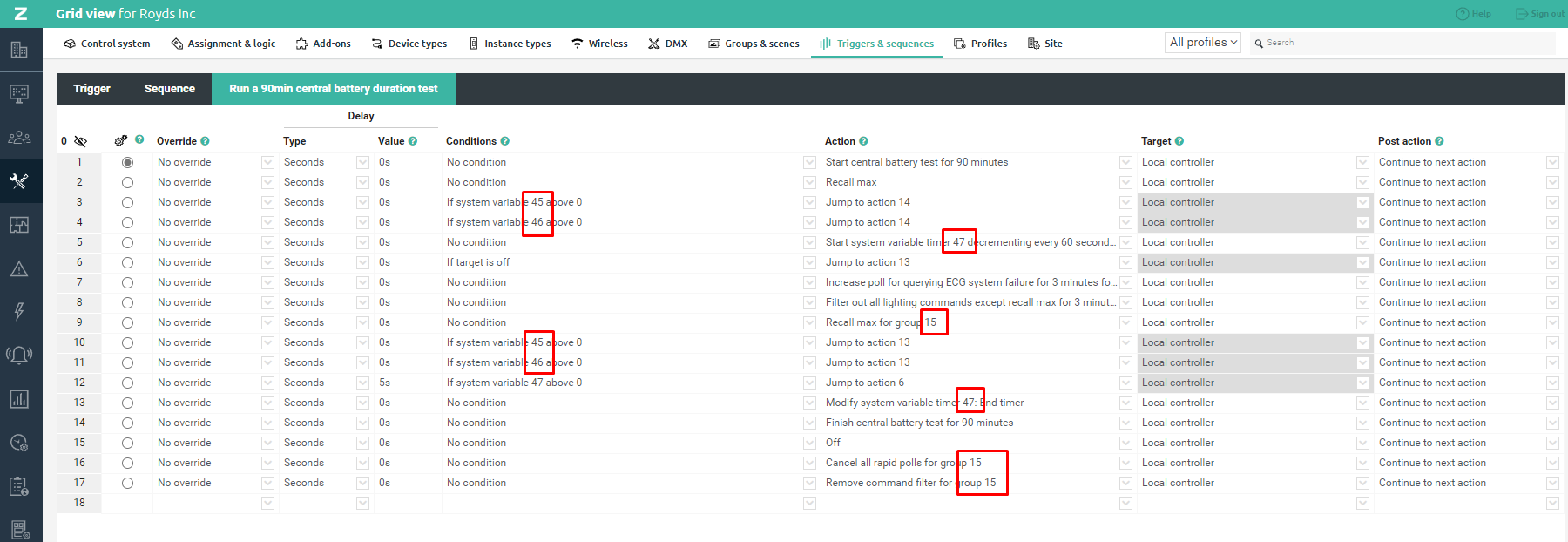

Update the sequence to point to the correct group number, zone and system variables
System variable 45 and 46 should be created and assigned as targets for any absolute inputs that will be used to fail the central battery test early such as sensors and level readings. These can be removed if not used.

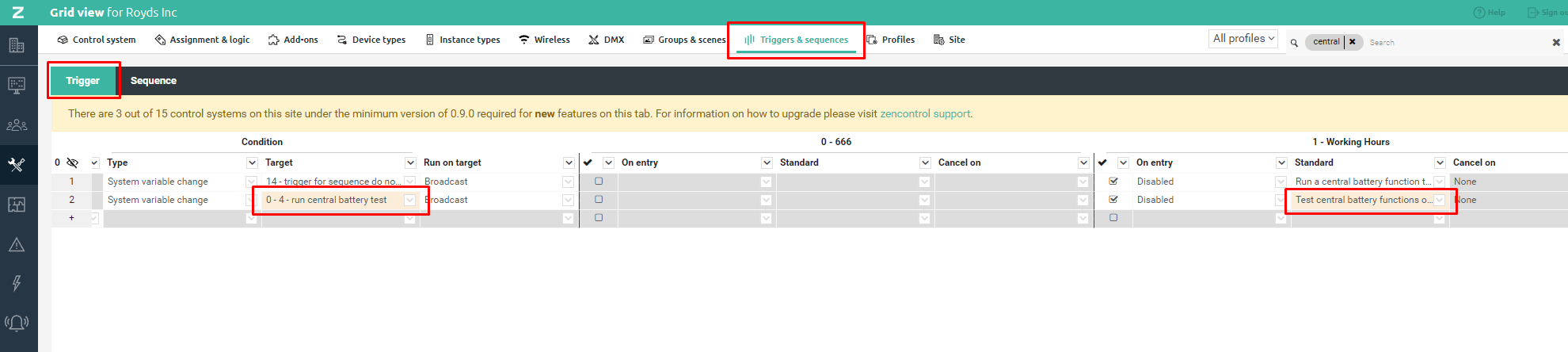

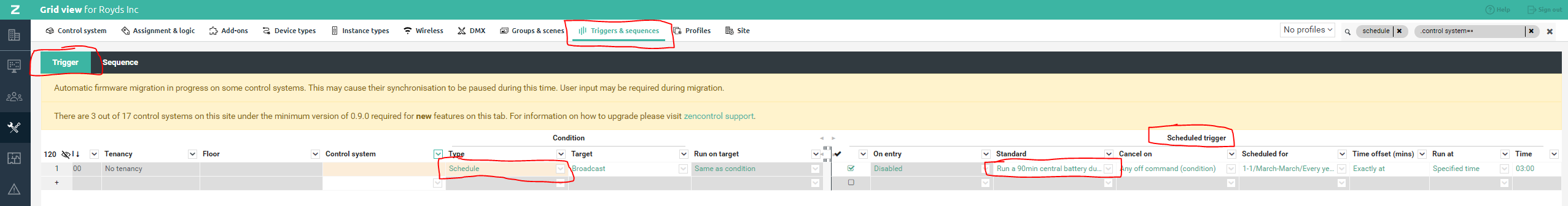

Add the sequence to a schedule trigger or any kind of trigger you want to start the test

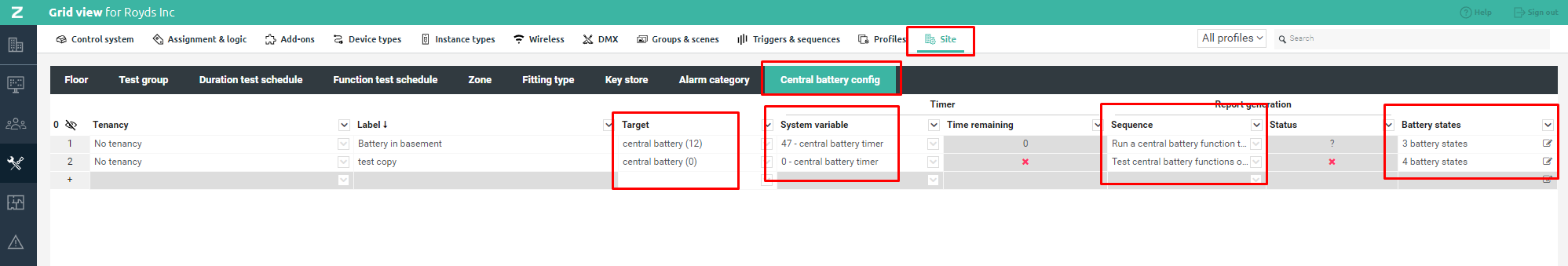

Create a central battery configuration that targets your central battery zone + group number, system variable used for the timer and the sequence on the control system that is managing the test
You can also add any battery states that are required to cancel your test immediately. These would be the absolute inputs targeting the system variables set in the sequence, which is 45 and 46 in our example template
