How to view and create thread devices in web portal

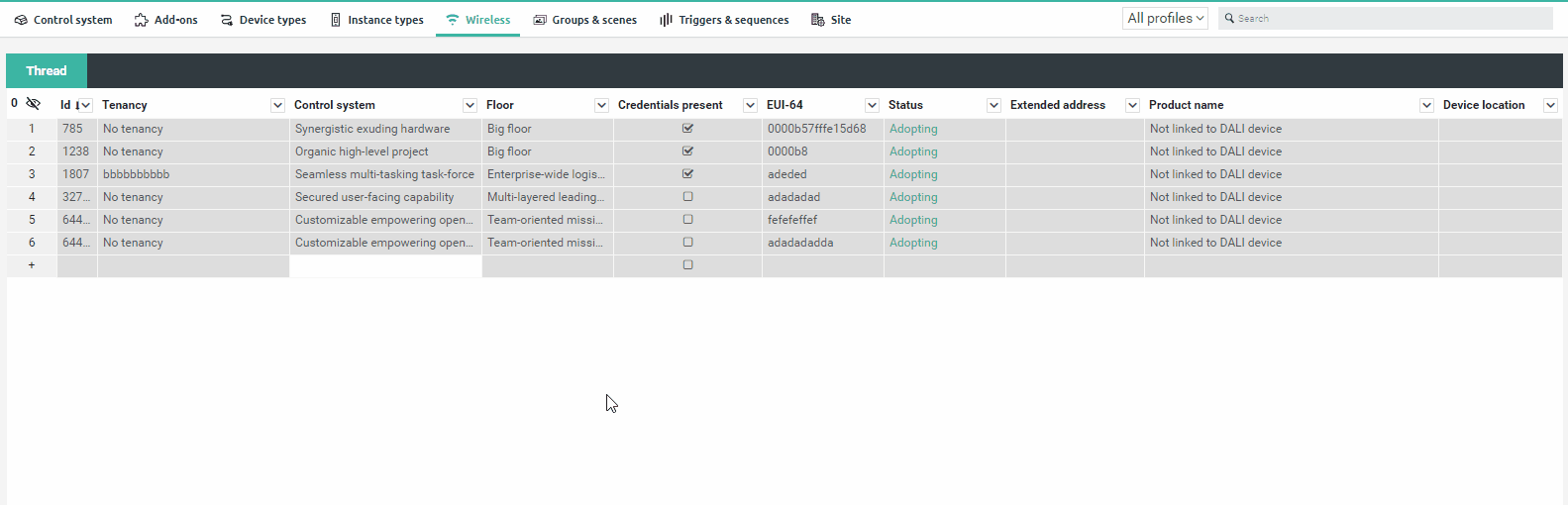

The Thread tab is located under the Wireless perspective in grid view. This page will list all of the current thread devices on the site along with their current information. To add a new thread device simply select the control system from the last row in the view which you want to add the thread device to. If the control system does not appear in the list then it may not support thread devices. Selecting a control system will bring up a dialog to enter the QR code for the thread device.

Once a valid QR code is entered then clicking the create button will create the thread row and it should begin the adoption process. You will see it appear in the list not long after creation. The right click menu allows you to readopt or clear commissioning credentials if there are credentials present for the row or you can remove a thread row.

After the thread has been added to the site and has been adopted, you should then be able to edit the Thread device settings from the relevant tab in the Wireless section. The control system should automatically create these rows once the thread exists.

The Tx power can be changed to alter the transmit power of the wireless daughterboard for the thread device.
