Fan Speed Control
The zc-smart-fan has 4 active speeds. These speeds are controlled by the ECGs arc level. To change speeds, the arc level must be changed to an arc level between the ranges listed below.
Output Wiring

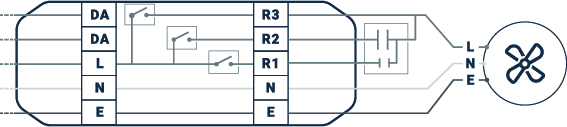

The following wiring diagram should be followed
Speed to Arc
|
Speed |
Arc Level | Outputs Active |
| Off | 0 | - |
| 1 | 1-63 | 1 |
| 2 | 64-127 | 2 |
| 3 | 128-191 | 1 and 2 |
| 4 | 192-254 | 3 |
